The Most Common Failure Items on a Final Drive Motor

Failure Items in a Final Drive #

Have you ever wondered what the most common failure items in a final drive motor are? Here’s what one of our experts had to say.

Main Bearing #

Once one of the main bearings starts to fail, it can take the rest of the final drive with it. In fact, the main bearings are one of the most common components to fail on a final drive. You can tell it’s having problems when there is excessive noise or vibration, the outer seal is beginning to leak, or the gearbox is heating up too much. Note that when the main bearing is replaced, the face seals are typically replaced at the same time.

Gears and Gear Bearings #

Another source of problems can be with the gears themselves. One area of concern is the gear teeth. The tip of the teeth should have a somewhat flattened surface. However, as the gears begin to wear, the tip of the teeth will begin wear away leaving the teeth with a pointed tip. When they have worn to this degree, it’s time to replace them. Another common issue related to the gears is too much play in the lower gear bearing.

Upper and Lower Shafts #

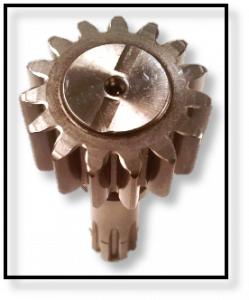

The upper and lower shafts are where are few more issues can crop up: look for damaged gear splines and too much play. You’ll notice the gear splines on the new upper shaft shown above have a flat area on the top of the gear teeth. If that flattened surface has been worn away until the teeth look pointed, it’s time to replace the shaft.

In some more severe cases, such as the one shown below, the teeth have been worn away until the shafts can no longer engage the coupler. Again, when the teeth begin to show excessive wear the shaft really needs to be replaced.

Seals #

Whenever a final drive is being overhauled, it is best practice to go ahead and replace all seals and o-rings. These are, of course, another common source of problems in final drives and their wear is evidenced by leaks of either gear oil or hydraulic fluid.

Most Common Cause of Failure for a Final Drive #

We’ve talked about the most common parts to fail on a final drive, but what about general causes of failure? Our expert told us that about 90% of the drives we repair are caused by a clogged case drain filter.  The second leading cause of final drive or travel motor failure is a weak charge pump. If the charge pump is weak, it will not be able to provide enough hydraulic pressure to release the internal brake, which essentially means driving with the emergency brake on. One of the tell-tale signs is a loud squealing noise and lack of machine movement. What’s bad about a weak charge pump is that if you replace the damaged final drive with a new one without replacing the charge pump, it will damage the new final drive, too.

Conclusion #

The most common failure areas in a travel drive or final drive are the main bearings, gears and gear bearings, upper and lower shafts, and seals. Routine maintenance — including checking and replacing the case drain filter according to schedule — can greatly extend the life of these components and prevent damage to them.
